Product Description
ü Fastest ever smoke Speed
1 second Trigger, 8 seconds cover the full area
No heating time.
ü Easy to replace and refill
smoke container can be easily replaced, generator can be used repeatedly.
ü Innovative patented Technology
Drysmoke formula, unique cold smoke technology.
ü The densest smoke
The innovative formula with a high percentage density ensures really dense and powerful smoke.
ü Safe and certified
The security smoke formula is biodegradable and harmless to humans, furnishings and electrical equipment.
ü Low Power Consumption
Lowvoltagestart-up, low standby power consumption, Max working power 24W.
Product Details

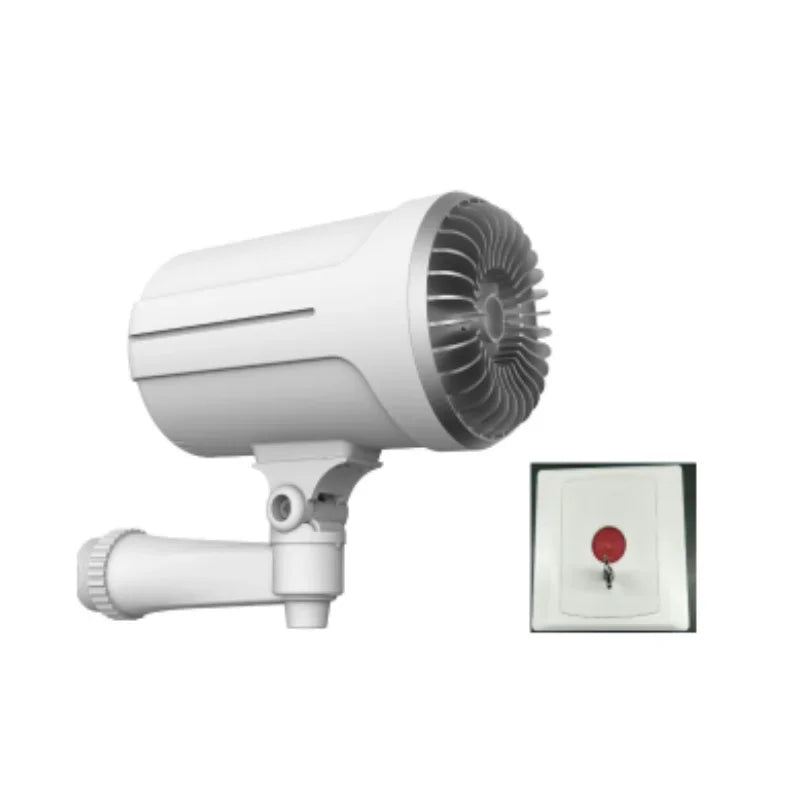

HAM-FL-Z CONTROLED BY [PANIC BUTTON]and[ON/OFF SWITCH]
| Name |
Model |
HAM-FL-Z |
| Name |
Security Fog Generator |
| Fog System
|
Fog Formula |
Solid Dry Material |
| Protect Area |
In closed or half closed Area(height2.5-3m) With filter:100m3 Without filter: 150m3 |
| FogPerformance |
Cold smoke, 1 second triggered, no heating time. 15-20 seconds ejection time, 30-45 minutes fog duration time |
| Control |
Trigger Method |
Panic Button/On Off Switch |
| Connection & Active |

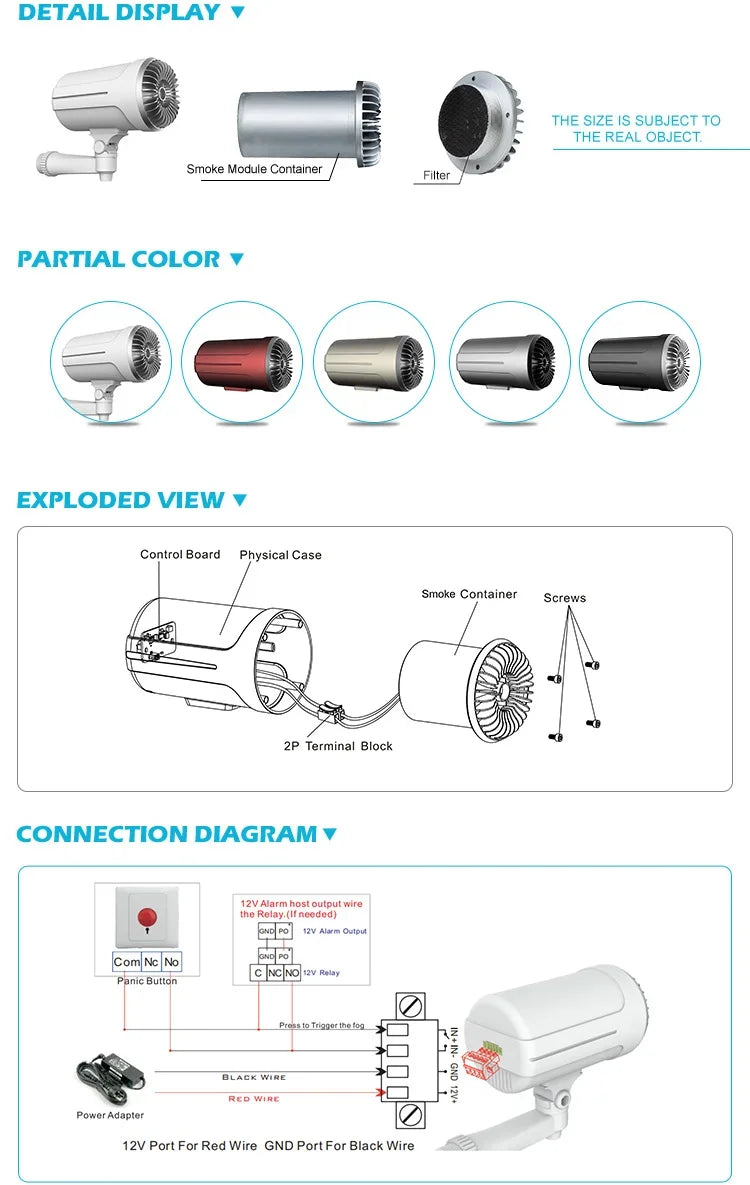

Connect the IN+&IN-, Press the button at least 2 seconds (suggest 5 seconds) to trigger fog. It switches to power saving mode after triggering. |
| Specification
|
Power |
DC12V,3A |
| Power Consumption |
0-24W |
| Working Temperature |
-10℃~ 50℃ |
| Operating Humidity |
0%-80% |

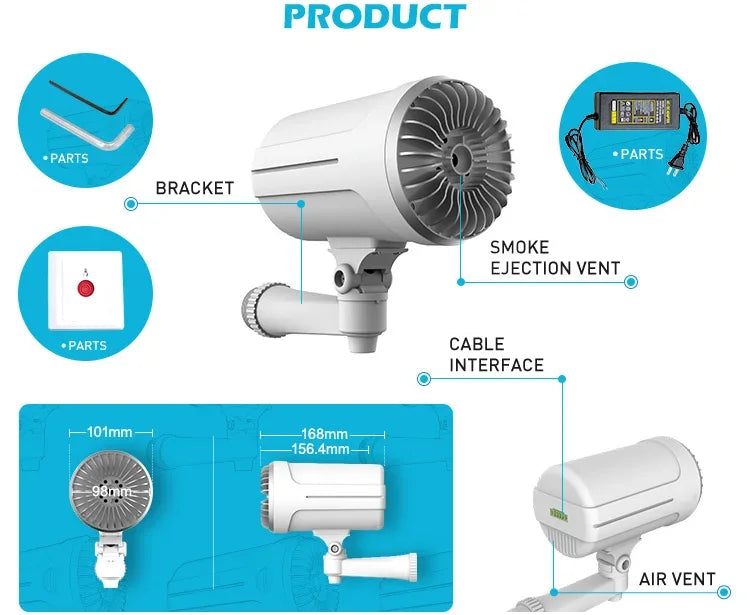

| Installation |
On the Wall or Ceiling |
| Qualification |
Certification |
CE,ISO:9001, ISO:14004, RoHs, NON-TOXIC test report |
| Patent |
Design Patent, Utility Model Patent |

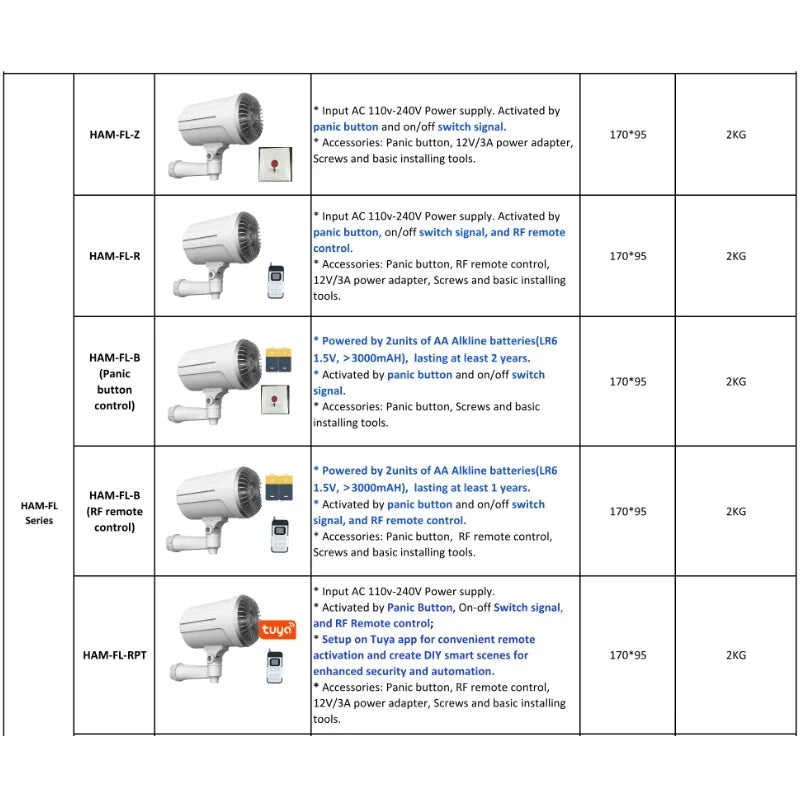

| MODEL NO |
FUNCTION&TRIGGER |
PROTECT AREA (WITH 2 TYPES OF FOG CONTAINER) |
| HAM-FL-Z |
* Panic Button
* On-Off Switch
|

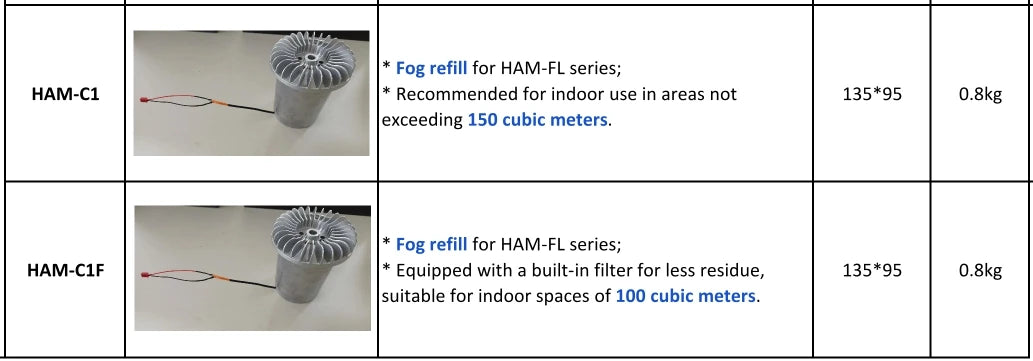

cartridge model: HAM-C1 |
Without Filter, more smoke. 150m³ protection |
| cartridge model: HAM-C1F |
With Filter, less residue. 100m³ protection |

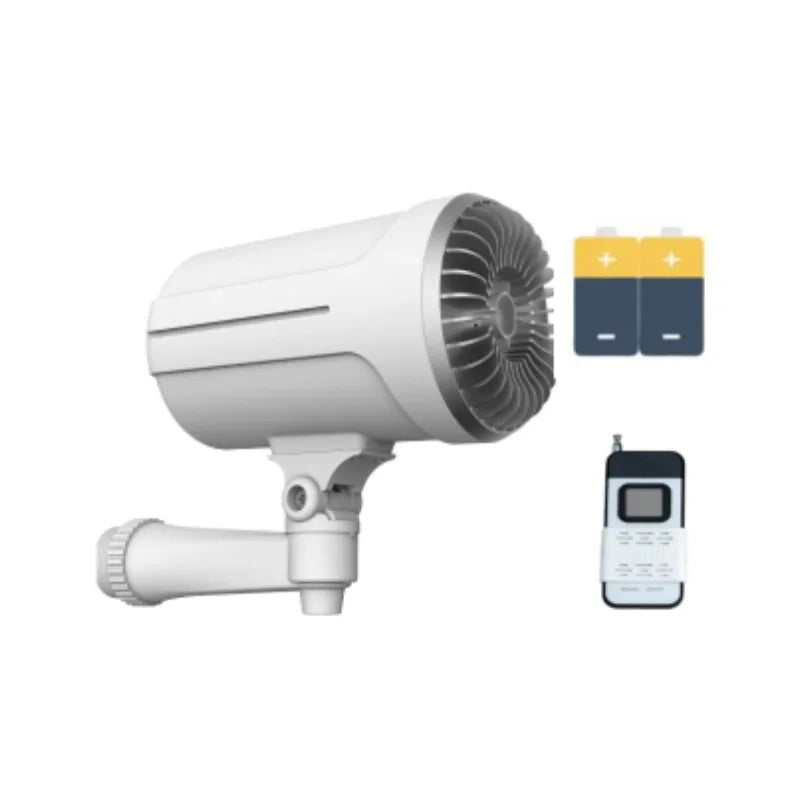

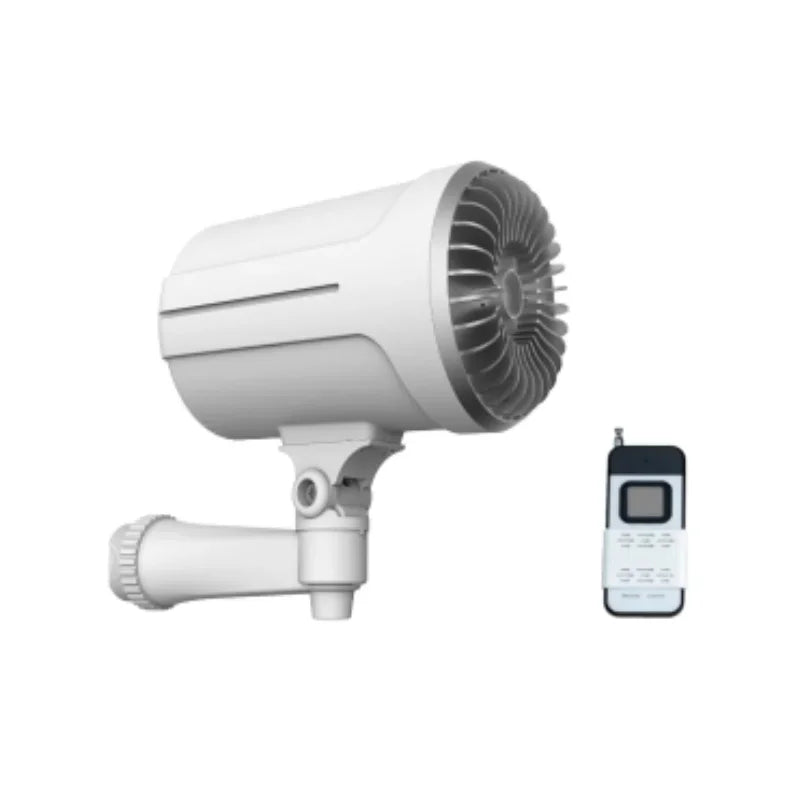

| HAM-FL-R |
* Remote Control
* Panic Button
* On-Off Switch
|
cartridge model: HAM-C1 |
Without Filter, more smoke. 150m³ protection |
| cartridge model: HAM-C1F |
With Filter, less residue. 100m³ protection |

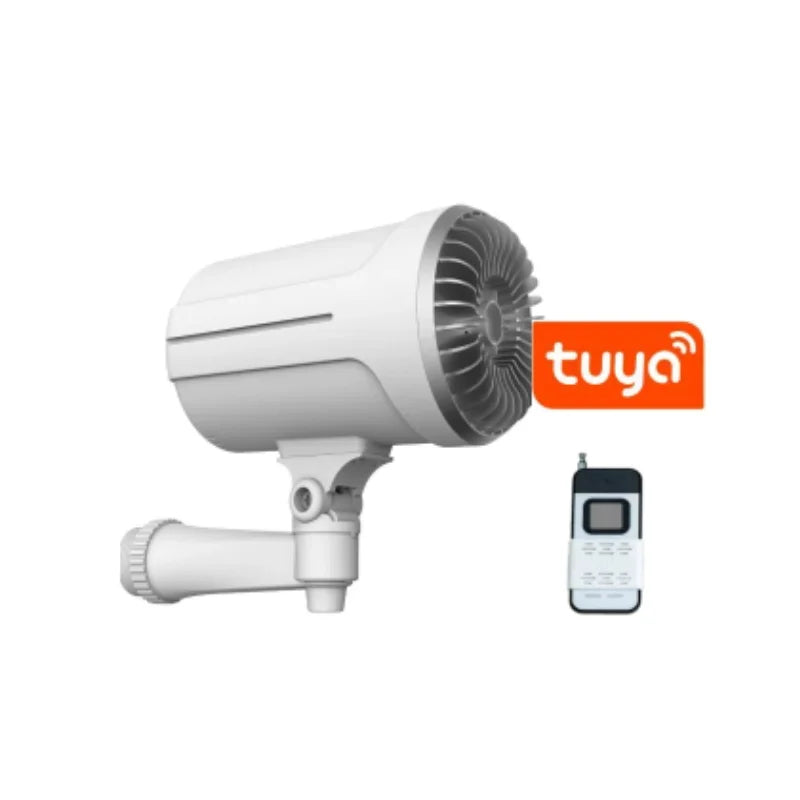

| HAM-FL-RPt
|
* TUYA app control
* Remote Control
* Panic Button
* On-Off Switch
|
cartridge model: HAM-C1 |
Without Filter, more smoke. 150m³ protection |
| cartridge model: HAM-C1F |
With Filter, less residue. 100m³ protection |
If you need additional fog refill, please contact me for purchase
